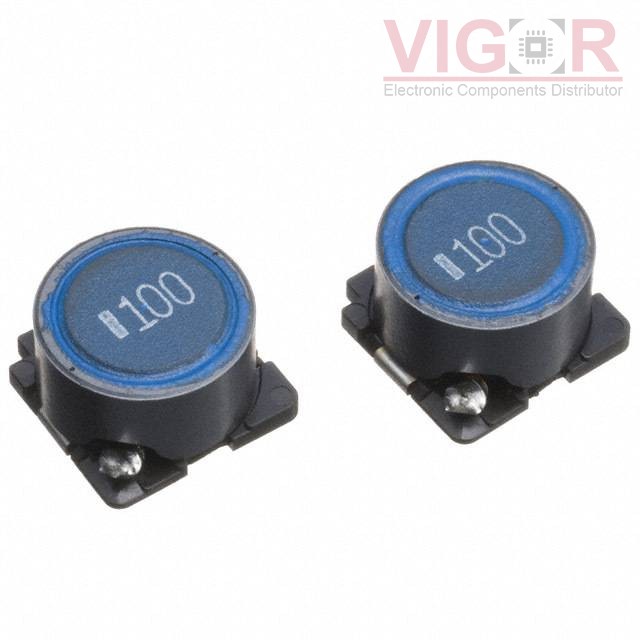

LGJ12575TS-220M4R0-H

Part No :: LGJ12575TS-220M4R0-H

Manufacturer: TDK Corporation

VIGOR # :: 1618511

Description: FIXED IND 22UH 4A 26.3 MOHM SMD

Catalog: Fixed Inductors

DataSheet: LGJ12575TS-220M4R0-H PDF

Country of origin: -

Date code: -

LGJ12575TS-220M4R0-H Specifications

Type	Description
Series:	LGJ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	4 A
Current - Saturation (Isat):	4A
Shielding:	Shielded
DC Resistance (DCR):	26.3mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):	0.295" (7.50mm)
