LQG15HN68NJ02D

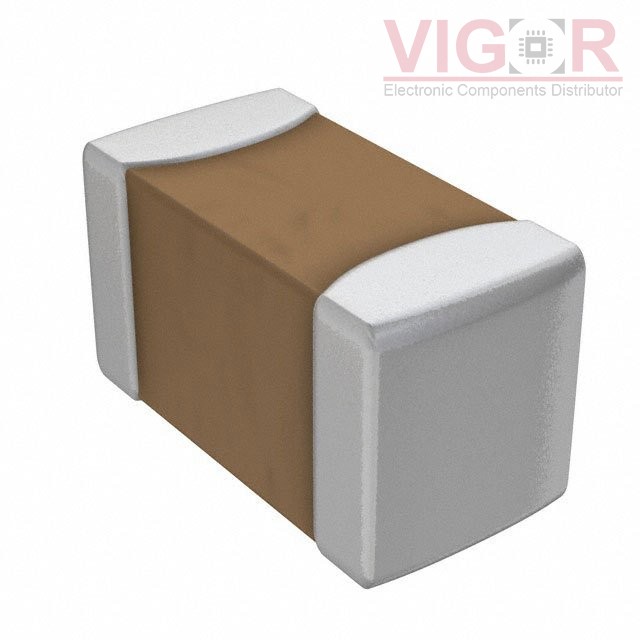

Image is for reference,
please contact us to get the real picture

Part No :: LQG15HN68NJ02D

Manufacturer: TOKO / Murata

Description: FIXED IND 68NH 200MA 1.25 OHM

Catalog: Fixed Inductors

DataSheet: LQG15HN68NJ02D PDF

Availability: 4820 pieces

Unit Price: ~~$0.10000~~

Current price of LQG15HN68NJ02D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LQG15HN68NJ02D Specifications

Type	Description
Series:	LQG15
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Air
Inductance:	68 nH
Tolerance:	±5%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.25Ohm Max
Q @ Freq:	8 @ 100MHz
Frequency - Self Resonant:	800MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.022" (0.55mm)

Please confirm the specifications of the products when ordering.
