0512CDMCCDS-R56MC

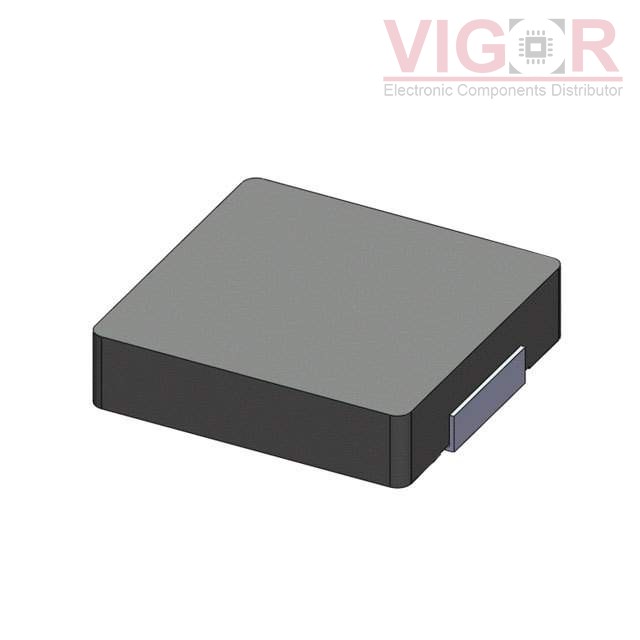

Image is for reference,
please contact us to get the real picture

Part No :: 0512CDMCCDS-R56MC

Manufacturer: Sumida Corporation

Description: FIXED IND 560NH 7.2A 18.6MOHM SM

Catalog: Fixed Inductors

DataSheet: 0512CDMCCDS-R56MC PDF

Availability: 4000 pieces

Unit Price: ~~$1.14000~~

Current price of 0512CDMCCDS-R56MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0512CDMCCDS-R56MC Specifications

Type	Description
Series:	0512CDMCC/DS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	560 nH
Tolerance:	±20%
Current Rating (Amps):	7.2 A
Current - Saturation (Isat):	8A
Shielding:	Shielded
DC Resistance (DCR):	18.6mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	SMD
Size / Dimension:	0.213" L x 0.205" W (5.40mm x 5.20mm)
Height - Seated (Max):	0.047" (1.20mm)
