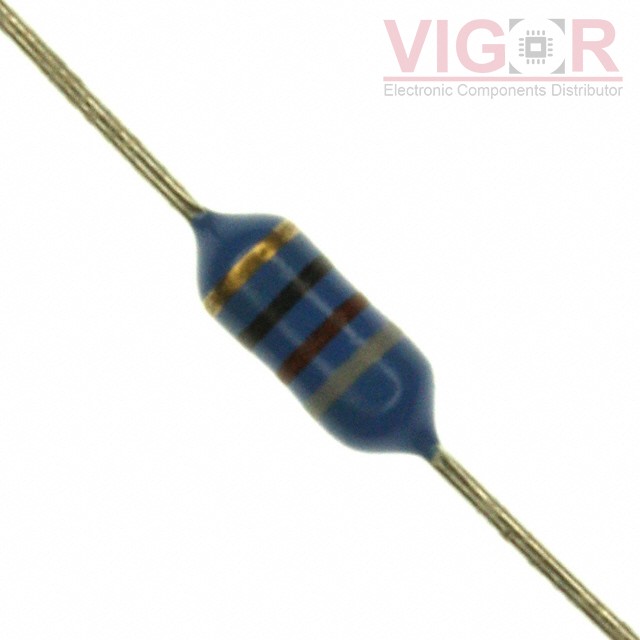

78F820J-RC

Part No :: 78F820J-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 82UH 175MA 3.6 OHM TH

Catalog: Fixed Inductors

DataSheet: 78F820J-RC PDF

Availability: 9723 pieces

Current price of 78F820J-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

78F820J-RC Specifications

Type	Description
Series:	78F
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	82 µH
Tolerance:	±5%
Current Rating (Amps):	175 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.6Ohm Max
Q @ Freq:	60 @ 2.5MHz
Frequency - Self Resonant:	6MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	2.5 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.110" Dia x 0.280" L (2.79mm x 7.11mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
