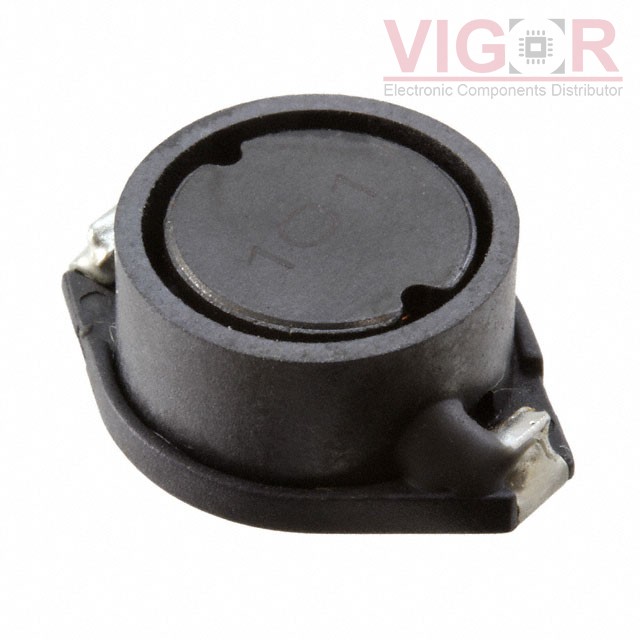

PM5022S-680M-RC

Part No :: PM5022S-680M-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1620641

Description: FIXED IND 68UH 1.6A 170 MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM5022S-680M-RC PDF

Country of origin: -

Date code: -

PM5022S-680M-RC Specifications

Type	Description
Series:	PM5022S
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	1.6 A
Current - Saturation (Isat):	3.4A
Shielding:	Shielded
DC Resistance (DCR):	170mOhm
Q @ Freq:	37 @ 2.52MHz
Frequency - Self Resonant:	6MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):	0.280" (7.10mm)
