ATFC-0402-12NG-T

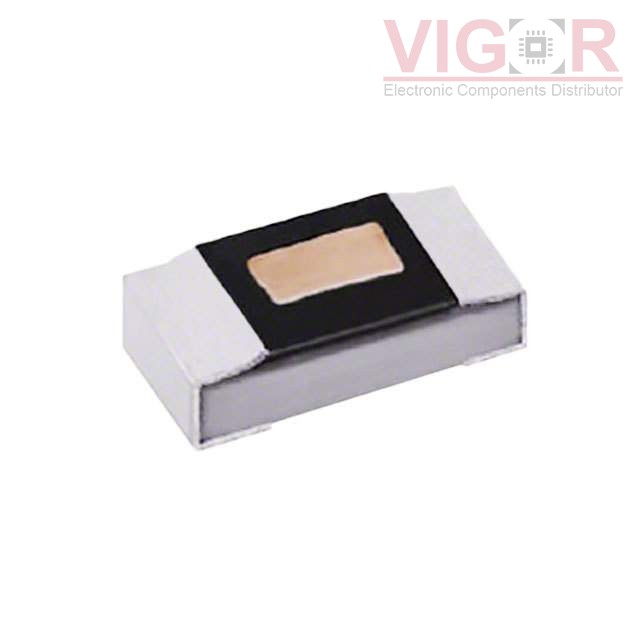

Image is for reference,
please contact us to get the real picture

Part No :: ATFC-0402-12NG-T

Manufacturer: Abracon

Description: FIXED IND 12NH 180MA 1.55 OHM

Catalog: Fixed Inductors

DataSheet: ATFC-0402-12NG-T PDF

Availability: 0 pieces

Unit Price: ~~$0.03072~~

Current price of ATFC-0402-12NG-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ATFC-0402-12NG-T Specifications

Type	Description
Series:	ATFC-0402
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Thin Film
Material - Core:	Ceramic
Inductance:	12 nH
Tolerance:	±2%
Current Rating (Amps):	180 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.55Ohm Max
Q @ Freq:	13 @ 500MHz
Frequency - Self Resonant:	3.7GHz
Ratings:	-
Operating Temperature:	-45°C ~ 85°C
Inductance Frequency - Test:	500 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.015" (0.37mm)
