RLF12560T-2R7N110

RLF12560T-2R7N110

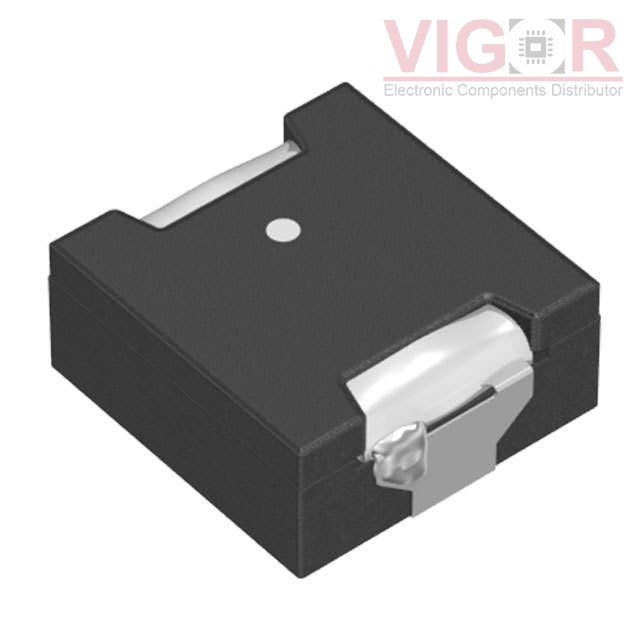

Image is for reference,
please contact us to get the real picture

Part No :

RLF12560T-2R7N110

Manufacturer
TDK Corporation
Description
FIXED IND 2.7UH 11.5A 5.4 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Oct 02 - Oct 06 2025
DataSheet
RLF12560T-2R7N110 PDF
Availability
0 pieces
Unit Price
$2.44000

Current price of RLF12560T-2R7N110 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RLF12560T-2R7N110 Specifications
Type Description
Series:RLF
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Last Time Buy
Type:Wirewound
Material - Core:Ferrite
Inductance:2.7 µH
Tolerance:±30%
Current Rating (Amps):11.5 A
Current - Saturation (Isat):14.4A
Shielding:Shielded
DC Resistance (DCR):5.4mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.504" L x 0.492" W (12.80mm x 12.50mm)
Height - Seated (Max):0.236" (6.00mm)
