SRP1770TA-3R3M

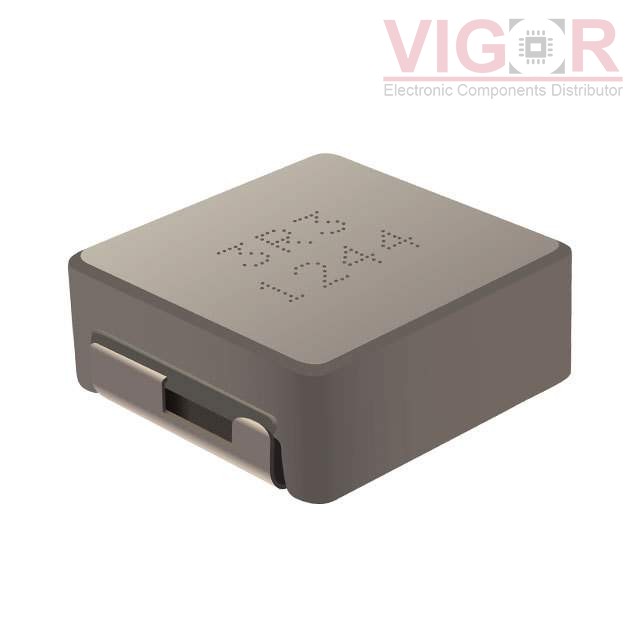

Image is for reference,
please contact us to get the real picture

Part No :: SRP1770TA-3R3M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 3.3UH 28A 3.9 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP1770TA-3R3M PDF

Availability: 786 pieces

Unit Price: ~~$4.59000~~

Current price of SRP1770TA-3R3M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP1770TA-3R3M Specifications

Type	Description
Series:	SRP1770TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	3.3 µH
Tolerance:	±20%
Current Rating (Amps):	28 A
Current - Saturation (Isat):	45A
Shielding:	Shielded
DC Resistance (DCR):	3.9mOhm Max
Q @ Freq:	20 @ 100kHz
Frequency - Self Resonant:	17MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.665" L x 0.665" W (16.90mm x 16.90mm)
Height - Seated (Max):	0.276" (7.00mm)
