LQH31HNR14K03L

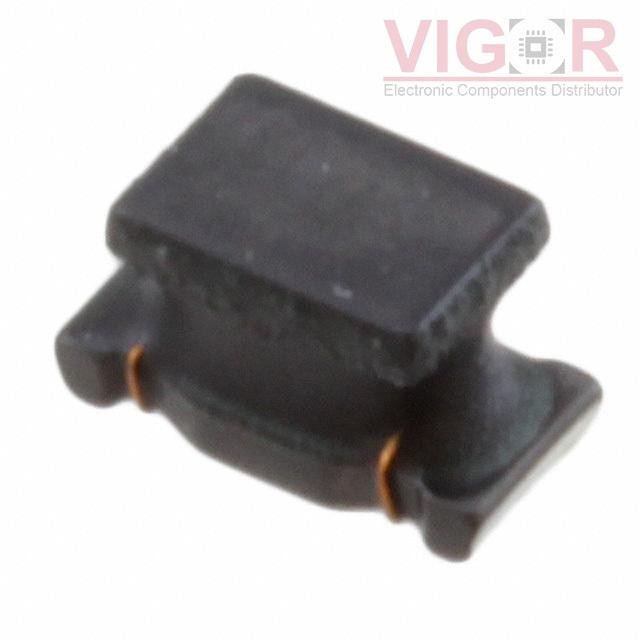

Image is for reference,
please contact us to get the real picture

Part No :: LQH31HNR14K03L

Manufacturer: TOKO / Murata

Description: FIXED IND 145NH 700MA 79.3 MOHM

Catalog: Fixed Inductors

DataSheet: LQH31HNR14K03L PDF

Availability: 47 pieces

Unit Price: ~~$0.84000~~

Current price of LQH31HNR14K03L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LQH31HNR14K03L Specifications

Type	Description
Series:	LQH31
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	145 nH
Tolerance:	±10%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	79.3mOhm Max
Q @ Freq:	60 @ 100MHz
Frequency - Self Resonant:	500MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
