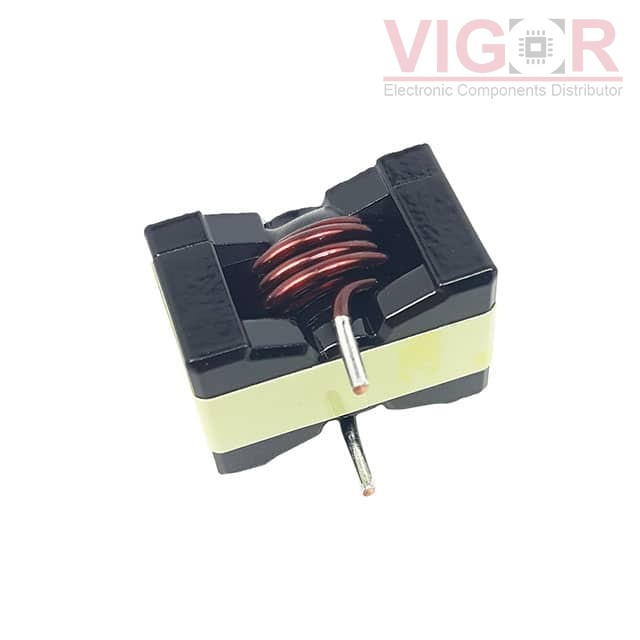

7443782012150

Part No :: 7443782012150

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 15UH 20.6A 5 MOHM TH

Catalog: Fixed Inductors

DataSheet: 7443782012150 PDF

Availability: 0 pieces

Current price of 7443782012150 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7443782012150 Specifications

Type	Description
Series:	WE-HCFT
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Manganese Zinc Ferrite (MnZn)
Inductance:	15 µH
Tolerance:	±20%
Current Rating (Amps):	20.6 A
Current - Saturation (Isat):	12.9A
Shielding:	Shielded
DC Resistance (DCR):	5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.866" L x 0.669" W (22.00mm x 17.00mm)
Height - Seated (Max):	0.531" (13.50mm)
