B82472P6105M000

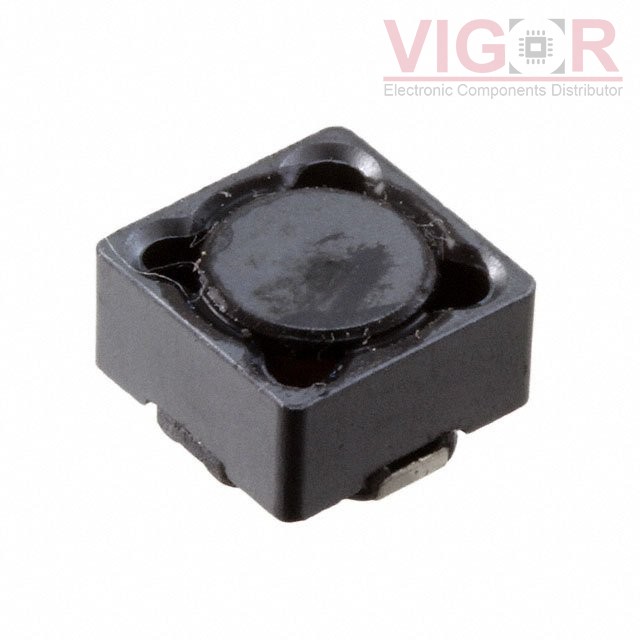

Image is for reference,
please contact us to get the real picture

Part No :: B82472P6105M000

Manufacturer: TDK EPCOS

Description: FIXED IND 1MH 200MA 3.85 OHM SMD

Catalog: Fixed Inductors

DataSheet: B82472P6105M000 PDF

Availability: 2840 pieces

Unit Price: ~~$1.79000~~

Current price of B82472P6105M000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82472P6105M000 Specifications

Type	Description
Series:	B82472P6
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 mH
Tolerance:	±20%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	150mA
Shielding:	Shielded
DC Resistance (DCR):	3.85Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max):	0.177" (4.50mm)
