ELJ-FB180JF

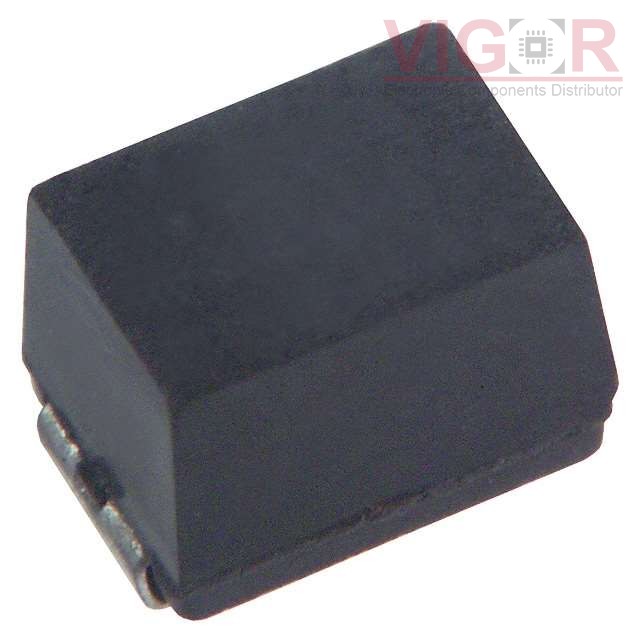

Image is for reference,
please contact us to get the real picture

Part No :: ELJ-FB180JF

Manufacturer: Panasonic

Description: FIXED IND 18UH 205MA 2.3 OHM SMD

Catalog: Fixed Inductors

DataSheet: ELJ-FB180JF PDF

Availability: 893 pieces

Unit Price: ~~$0.41000~~

Current price of ELJ-FB180JF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ELJ-FB180JF Specifications

Type	Description
Series:	FB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	18 µH
Tolerance:	±5%
Current Rating (Amps):	205 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.3Ohm Max
Q @ Freq:	50 @ 5MHz
Frequency - Self Resonant:	16MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
