B82559A0153A024

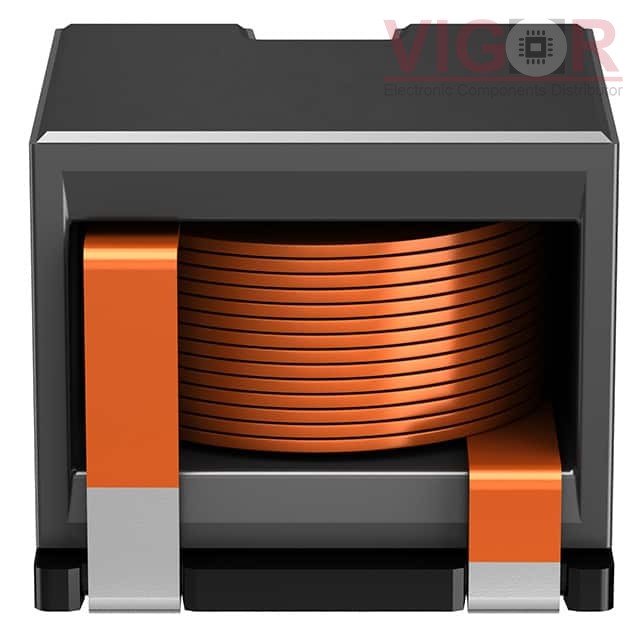

Image is for reference,
please contact us to get the real picture

Part No :: B82559A0153A024

Manufacturer: TDK EPCOS

Description: FIXED IND 15UH 25.5A 2.8 MOHM

Catalog: Fixed Inductors

DataSheet: B82559A0153A024 PDF

Availability: 197 pieces

Unit Price: ~~$8.76000~~

Current price of B82559A0153A024 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82559A0153A024 Specifications

Type	Description
Series:	ERU24 - Flat Wire Inductor
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	15 µH
Tolerance:	±10%
Current Rating (Amps):	25.5 A
Current - Saturation (Isat):	24.6A
Shielding:	Shielded
DC Resistance (DCR):	2.8mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, 3 Lead
Supplier Device Package:	-
Size / Dimension:	0.972" L x 0.898" W (24.70mm x 22.80mm)
Height - Seated (Max):	0.719" (18.25mm)

Please confirm the specifications of the products when ordering.
