NLV32T-5R6J-EFD

Part No :: NLV32T-5R6J-EFD

Manufacturer: TDK Corporation

VIGOR # :: 1627884

Description: FIXED IND 5.6UH 200MA 1.6 OHM

Catalog: Fixed Inductors

DataSheet: NLV32T-5R6J-EFD PDF

Country of origin: -

Date code: -

NLV32T-5R6J-EFD Specifications

Type	Description
Series:	NLV-EFD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	5.6 µH
Tolerance:	±5%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.6Ohm Max
Q @ Freq:	30 @ 7.96MHz
Frequency - Self Resonant:	45MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1770

Shipped from

HK warehouse

Expected Shipping Date

Apr 11 - Apr 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.3200~~	~~$0.32~~
2000	~~$0.1285~~	~~$257.02~~
4000	~~$0.1214~~	~~$485.48~~
6000	~~$0.1142~~	~~$685.38~~
10000	~~$0.1107~~	~~$1 106.60~~
50000	~~$0.1035~~	~~$5 176.50~~
100000	~~$0.1000~~	~~$9 995.00~~

Current price of NLV32T-5R6J-EFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LQG15WH4N1B02D

FIXED IND 4.1NH 800MA 100 MOHM

MHQ1005P0N9CT000

FIXED IND 0.9NH 1.2A 30 MOHM SMD

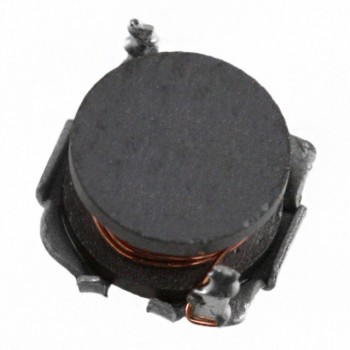

CDH115NP-101KC
