VLBU1007090T-R10L

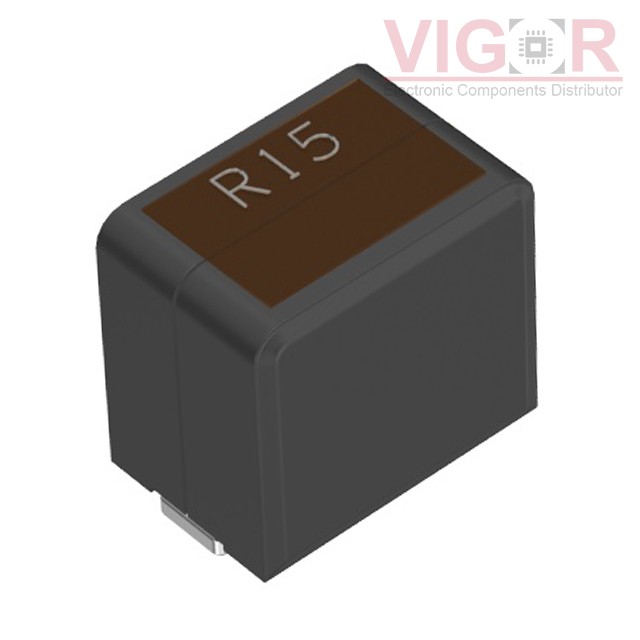

Image is for reference,
please contact us to get the real picture

Part No :: VLBU1007090T-R10L

Manufacturer: TDK Corporation

Description: FIXED IND 100NH 70A 0.18 MOHM

Catalog: Fixed Inductors

DataSheet: VLBU1007090T-R10L PDF

Availability: 697 pieces

Unit Price: ~~$2.57000~~

Current price of VLBU1007090T-R10L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VLBU1007090T-R10L Specifications

Type	Description
Series:	VLBU
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	100 nH
Tolerance:	±15%
Current Rating (Amps):	70 A
Current - Saturation (Isat):	120A
Shielding:	Unshielded
DC Resistance (DCR):	0.18mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.276" W (10.00mm x 7.00mm)
Height - Seated (Max):	0.354" (9.00mm)
