B78148S1564J000

Part No :: B78148S1564J000

Manufacturer: TDK EPCOS

VIGOR # :: 1630077

Description: FIXED IND 560UH 160MA 8.8 OHM TH

Catalog: Fixed Inductors

DataSheet: B78148S1564J000 PDF

Country of origin: -

Date code: -

B78148S1564J000 Specifications

Type	Description
Series:	BC
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	560 µH
Tolerance:	±5%
Current Rating (Amps):	160 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	8.8Ohm Max
Q @ Freq:	60 @ 796kHz
Frequency - Self Resonant:	160MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	2 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial
Supplier Device Package:	-
Size / Dimension:	0.157" Dia x 0.362" L (4.00mm x 9.20mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Aug 04 - Aug 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.1432~~	~~$0.14~~
2000	~~$0.1432~~	~~$286.40~~

Current price of B78148S1564J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LQG15HZ6N8H02D

FIXED IND 6.8NH 600MA 220 MOHM

LQH31MN100J03L

FIXED IND 10UH 100MA 3.25 OHM

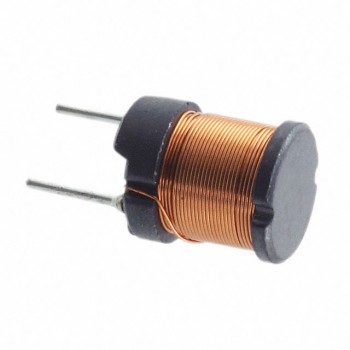

768772122
