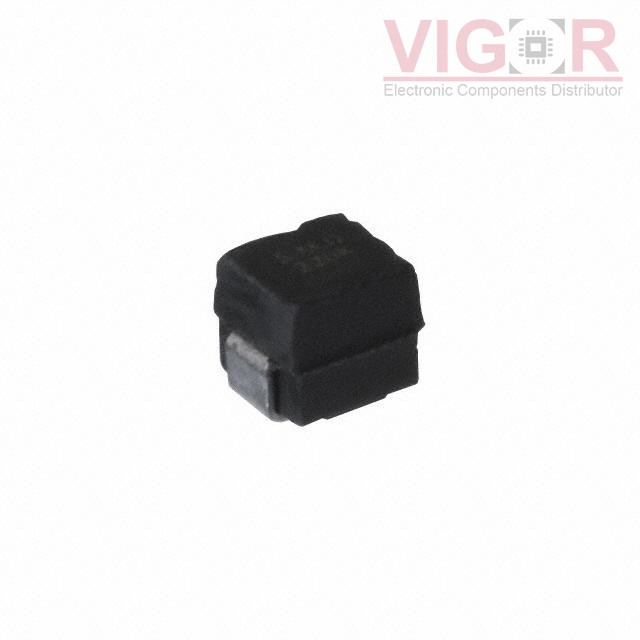

1008R-223J

Image is for reference,
please contact us to get the real picture

Part No :: 1008R-223J

Manufacturer: API Delevan

Description: FIXED IND 22UH 158MA 6 OHM SMD

Catalog: Fixed Inductors

DataSheet: 1008R-223J PDF

Availability: 340 pieces

Unit Price: ~~$4.50000~~

Current price of 1008R-223J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1008R-223J Specifications

Type	Description
Series:	1008R
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±5%
Current Rating (Amps):	158 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	6Ohm Max
Q @ Freq:	30 @ 2.5MHz
Frequency - Self Resonant:	17MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	2.5 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max):	0.095" (2.41mm)
