5022R-563H

Part No :: 5022R-563H

Manufacturer: API Delevan

VIGOR # :: 1635668

Description: FIXED IND 56UH 335MA 3 OHM SMD

Catalog: Fixed Inductors

DataSheet: 5022R-563H PDF

Country of origin: -

Date code: -

5022R-563H Specifications

Type	Description
Series:	5022R
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron
Inductance:	56 µH
Tolerance:	±3%
Current Rating (Amps):	335 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3Ohm Max
Q @ Freq:	55 @ 2.5MHz
Frequency - Self Resonant:	12MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	2.5 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):	0.230" (5.84mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 18 - Jan 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.09~~	~~$3.09~~
800	~~$2.56~~	~~$2 044.14~~

Current price of 5022R-563H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CLF12555T-4R7N-H

FIXED IND 4.7UH 5.3A 11.7 MOHM

P3519-334K

FIXED IND 330UH 220MA 6.06 OHM

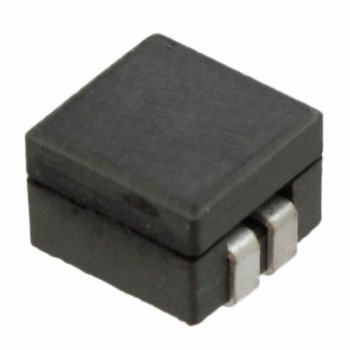

FPT705-200-R
