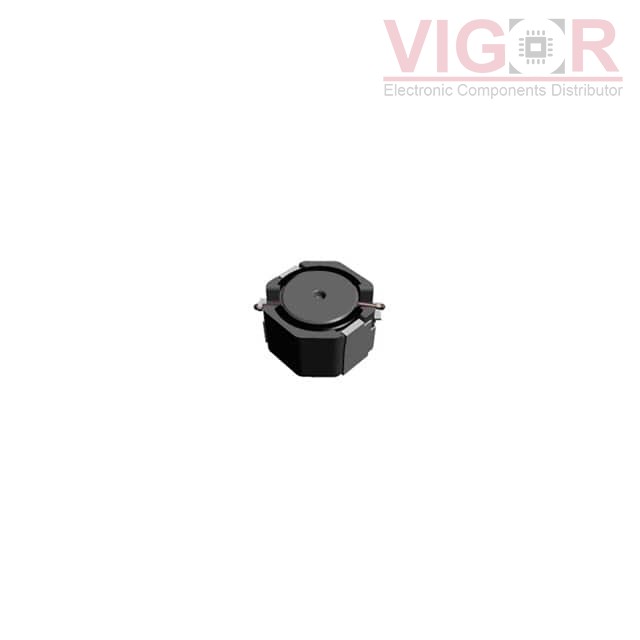

EST1040T1R5NDGA

Part No :: EST1040T1R5NDGA

Manufacturer: TAIYO YUDEN

Description: FIXED IND 1.5UH 3.3A 12 MOHM SMD

Catalog: Fixed Inductors

DataSheet: EST1040T1R5NDGA PDF

Availability: 1400 pieces

Current price of EST1040T1R5NDGA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EST1040T1R5NDGA Specifications

Type	Description
Series:	ES, T Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1.5 µH
Tolerance:	±30%
Current Rating (Amps):	3.3 A
Current - Saturation (Isat):	8.6A
Shielding:	Shielded
DC Resistance (DCR):	12mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	68MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.398" L x 0.394" W (10.10mm x 10.00mm)
Height - Seated (Max):	0.169" (4.30mm)

Please confirm the specifications of the products when ordering.
