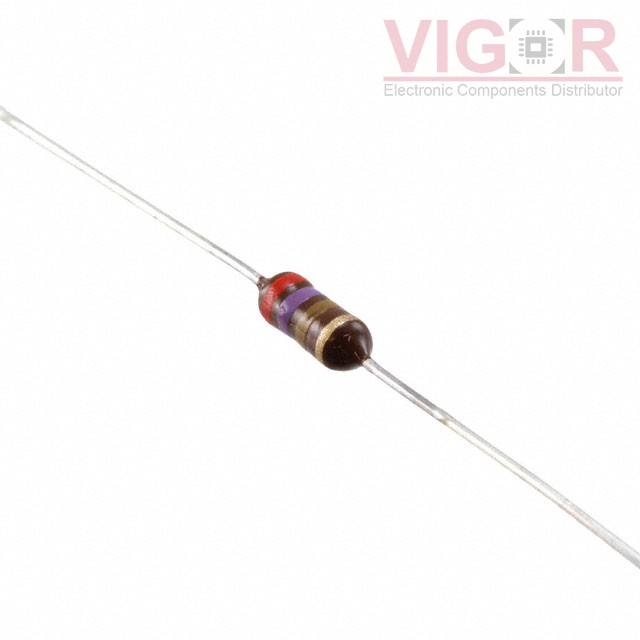

B78108S1274J009

Part No :: B78108S1274J009

Manufacturer: TDK EPCOS

VIGOR # :: 1635980

Description: FIXED IND 270UH 200MA 5.7 OHM TH

Catalog: Fixed Inductors

DataSheet: B78108S1274J009 PDF

Country of origin: Confirming

Date code: TBC

B78108S1274J009 Specifications

Type	Description
Series:	BC
Package:	Tape & Box (TB)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite Drum
Inductance:	270 µH
Tolerance:	±5%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	5.7Ohm Max
Q @ Freq:	70 @ 796kHz
Frequency - Self Resonant:	2.8MHz
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.157" Dia x 0.362" L (4.00mm x 9.20mm)
Height - Seated (Max):	-
