ECS-HCMPI-0503Q-1R0M-T

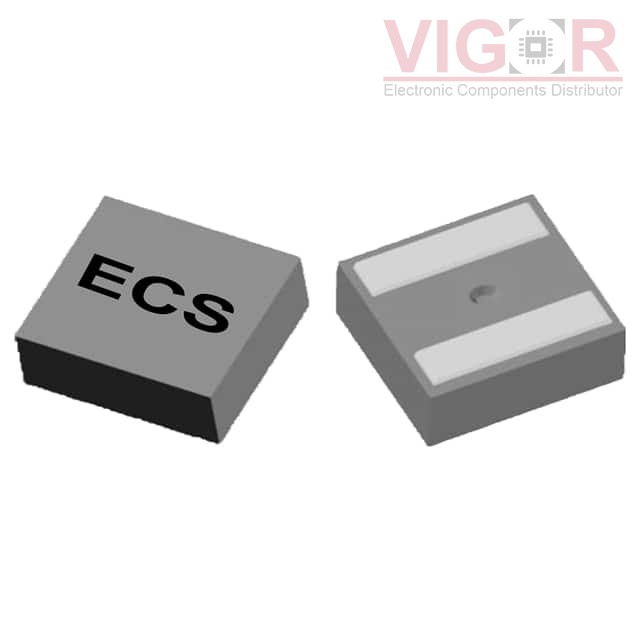

Image is for reference,
please contact us to get the real picture

Part No :: ECS-HCMPI-0503Q-1R0M-T

Manufacturer: ECS Inc. International

Description: FIXED IND 1UH 12.2A 7.6 MOHM SMD

Catalog: Fixed Inductors

DataSheet: ECS-HCMPI-0503Q-1R0M-T PDF

Availability: 20002000 pieces

Unit Price: ~~$1.59000~~

Current price of ECS-HCMPI-0503Q-1R0M-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECS-HCMPI-0503Q-1R0M-T Specifications

Type	Description
Series:	ECS-HCMPI-0503Q
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	12.2 A
Current - Saturation (Isat):	14.3A
Shielding:	Shielded
DC Resistance (DCR):	7.6mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	5030
Size / Dimension:	0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max):	0.122" (3.10mm)
