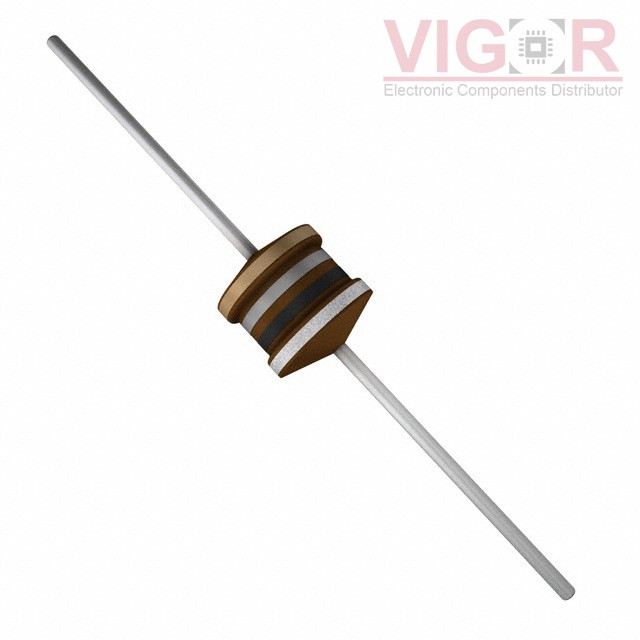

B82144F2183K000

Part No :: B82144F2183K000

Manufacturer: TDK EPCOS

Description: FIXED IND 18UH 2.2A 155 MOHM TH

Catalog: Fixed Inductors

DataSheet: B82144F2183K000 PDF

Availability: 0 pieces

Current price of B82144F2183K000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82144F2183K000 Specifications

Type	Description
Series:	LBC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	18 µH
Tolerance:	±10%
Current Rating (Amps):	2.2 A
Current - Saturation (Isat):	2.25A
Shielding:	Unshielded
DC Resistance (DCR):	155mOhm Max
Q @ Freq:	50 @ 252kHz
Frequency - Self Resonant:	12MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max):	-
