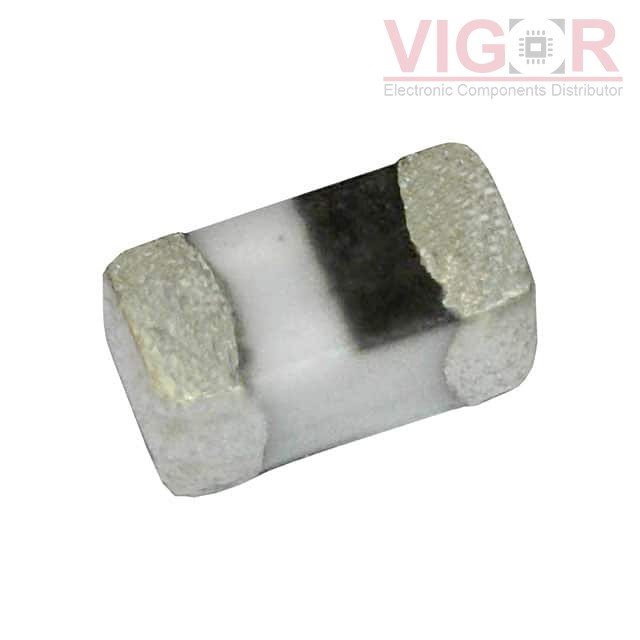

ASCH001005056N8JCP

Part No :: ASCH001005056N8JCP

Manufacturer: Chilisin Electronics

Description: FIXED IND 6.8NH 400MA 240 MOHM

Catalog: Fixed Inductors

DataSheet: ASCH001005056N8JCP PDF

Availability: 19741 pieces

Current price of ASCH001005056N8JCP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ASCH001005056N8JCP Specifications

Type	Description
Series:	ASCH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ceramic
Inductance:	6.8 nH
Tolerance:	±5%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	240mOhm Max
Q @ Freq:	8 @ 100MHz
Frequency - Self Resonant:	4.55GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
