LPWI201610H2R2T

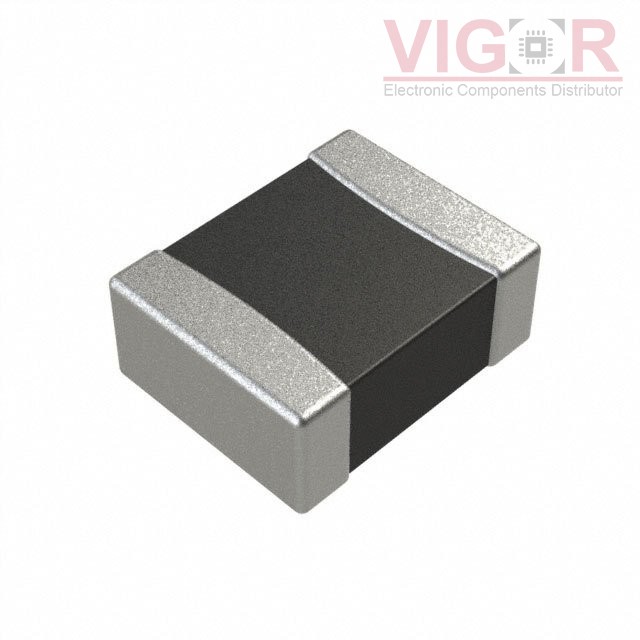

Image is for reference,
please contact us to get the real picture

Part No :: LPWI201610H2R2T

Manufacturer: Wickmann / Littelfuse

Description: FIXED IND 2.2UH 2.4A 100 MOHM

Catalog: Fixed Inductors

DataSheet: LPWI201610H2R2T PDF

Availability: 275 pieces

Unit Price: ~~$0.63000~~

Current price of LPWI201610H2R2T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LPWI201610H2R2T Specifications

Type	Description
Series:	LPWI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Thin Film
Material - Core:	Metal Composite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	2.4 A
Current - Saturation (Isat):	2.5A
Shielding:	Shielded
DC Resistance (DCR):	100mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0806 (2016 Metric)
Supplier Device Package:	0806 (2016 Metric)
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.039" (1.00mm)
