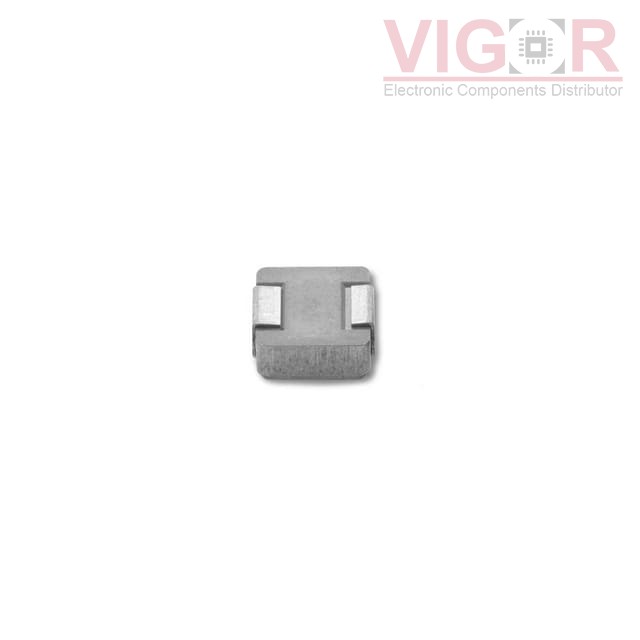

IHLP2020CZET1R0M11

Part No :: IHLP2020CZET1R0M11

Manufacturer: Vishay / Dale

Description: FIXED IND 1UH 10A 11MOHM SMD

Catalog: Fixed Inductors

DataSheet: IHLP2020CZET1R0M11 PDF

Availability: 1998 pieces

Unit Price: ~~$1.22000~~

Current price of IHLP2020CZET1R0M11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IHLP2020CZET1R0M11 Specifications

Type	Description
Series:	IHLP-2020CZ-11
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	10 A
Current - Saturation (Isat):	6.5A
Shielding:	Shielded
DC Resistance (DCR):	11mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	50MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max):	0.118" (3.00mm)
