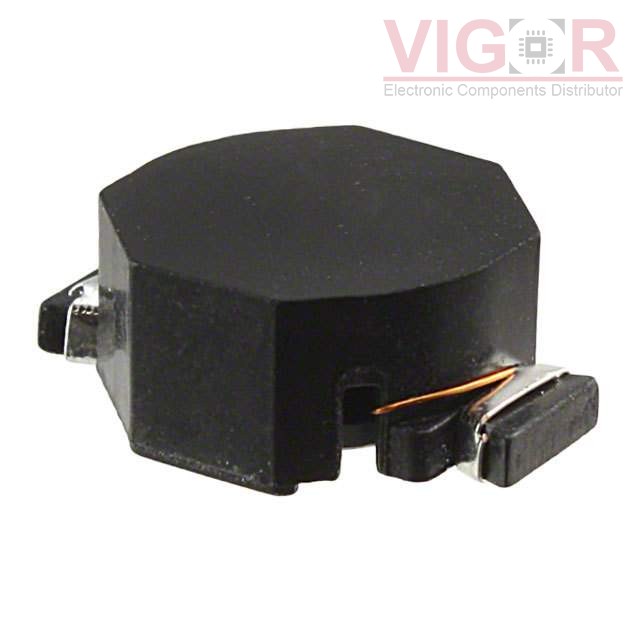

UP2B-820-R

Part No :: UP2B-820-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 82UH 1.34A 223.5 MOHM

Catalog: Fixed Inductors

DataSheet: UP2B-820-R PDF

Availability: 344 pieces

Current price of UP2B-820-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UP2B-820-R Specifications

Type	Description
Series:	UNI-PAC™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	82 µH
Tolerance:	±20%
Current Rating (Amps):	1.34 A
Current - Saturation (Isat):	1.03A
Shielding:	Unshielded
DC Resistance (DCR):	223.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.550" L x 0.410" W (13.97mm x 10.41mm)
Height - Seated (Max):	0.236" (6.00mm)

Please confirm the specifications of the products when ordering.
