SDR0503-101KL

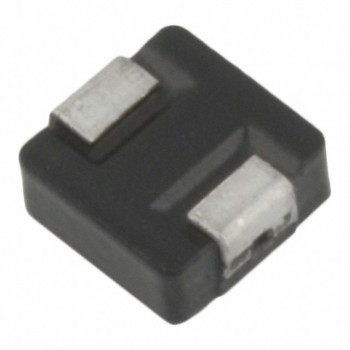

Image is for reference,
please contact us to get the real picture

Part No :: SDR0503-101KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 100UH 400MA 1.6OHM SMD

Catalog: Fixed Inductors

DataSheet: SDR0503-101KL PDF

Availability: 494 pieces

Unit Price: ~~$0.62000~~

Current price of SDR0503-101KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDR0503-101KL Specifications

Type	Description
Series:	SDR0503
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	100 µH
Tolerance:	±10%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	480mA
Shielding:	Unshielded
DC Resistance (DCR):	1.6Ohm Max
Q @ Freq:	40 @ 796kHz
Frequency - Self Resonant:	9MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.197" L x 0.189" W (5.00mm x 4.80mm)
Height - Seated (Max):	0.130" (3.30mm)
