CDRH125/LDNP-7R5NC

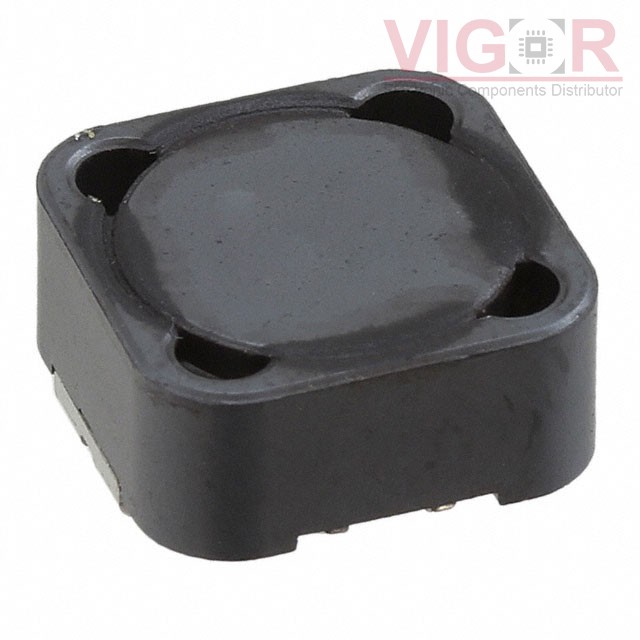

Image is for reference,
please contact us to get the real picture

Part No :: CDRH125/LDNP-7R5NC

Manufacturer: Sumida Corporation

Description: FIXED IND 7.5UH 5.6A 19 MOHM SMD

Catalog: Fixed Inductors

DataSheet: CDRH125/LDNP-7R5NC PDF

Availability: 0 pieces

Unit Price: ~~$0.63000~~

Current price of CDRH125/LDNP-7R5NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDRH125/LDNP-7R5NC Specifications

Type	Description
Series:	CDRH125/LD
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	7.5 µH
Tolerance:	±30%
Current Rating (Amps):	5.6 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	19mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):	0.236" (6.00mm)
