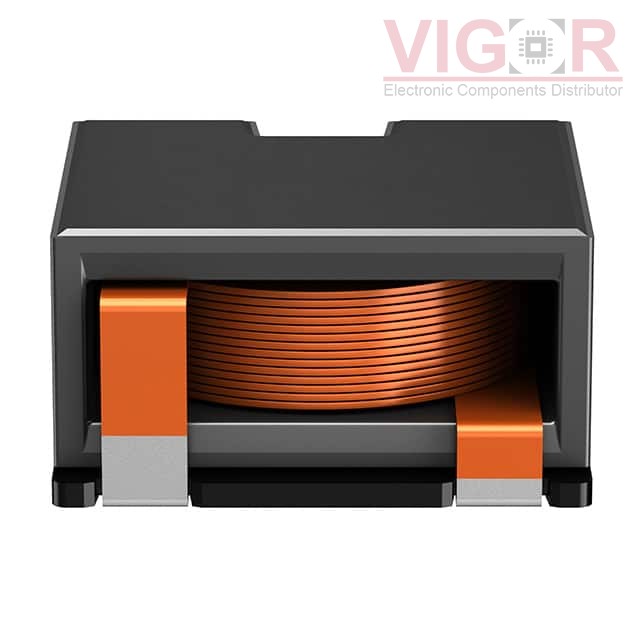

B82559B2102A019

Part No :: B82559B2102A019

Manufacturer: TDK EPCOS

Description: FIXED IND 1UH 36.3A 0.95 MOHM

Catalog: Fixed Inductors

DataSheet: B82559B2102A019 PDF

Availability: 426 pieces

Unit Price: ~~$6.54000~~

Current price of B82559B2102A019 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82559B2102A019 Specifications

Type	Description
Series:	ERU19 - Flat Wire Inductor
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 µH
Tolerance:	±10%
Current Rating (Amps):	36.3 A
Current - Saturation (Isat):	46.6A
Shielding:	Shielded
DC Resistance (DCR):	0.95mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, 3 Lead
Supplier Device Package:	-
Size / Dimension:	0.783" L x 0.728" W (19.90mm x 18.50mm)
Height - Seated (Max):	0.315" (8.00mm)
