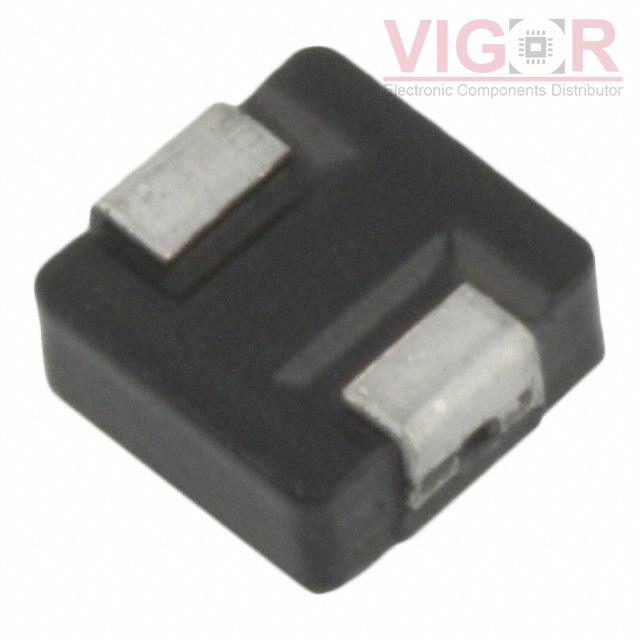

HCM0703-R15-R

Image is for reference,
please contact us to get the real picture

Part No :: HCM0703-R15-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 150NH 26A 2.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: HCM0703-R15-R PDF

Availability: 0 pieces

Unit Price: ~~$1.54000~~

Current price of HCM0703-R15-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCM0703-R15-R Specifications

Type	Description
Series:	HCM0703
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	150 nH
Tolerance:	±20%
Current Rating (Amps):	26 A
Current - Saturation (Isat):	52A
Shielding:	Shielded
DC Resistance (DCR):	2.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Max):	0.118" (3.00mm)
