AX97-30220

Part No :: AX97-30220

Manufacturer: Triad Magnetics

VIGOR # :: 1643604

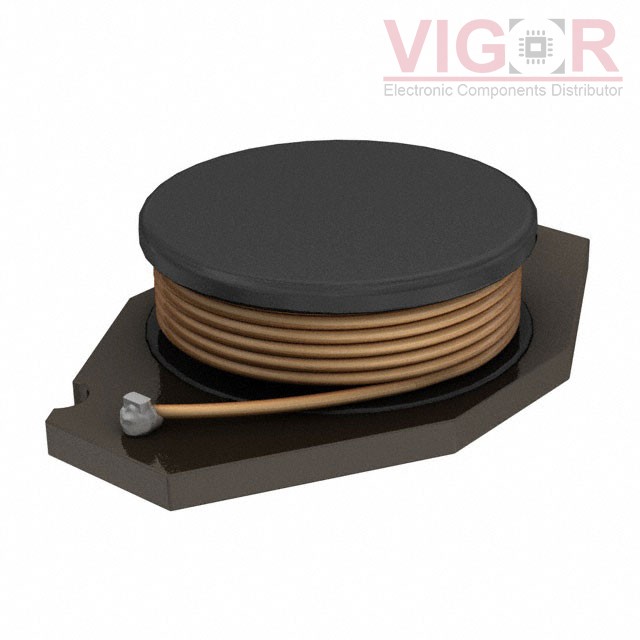

Description: FIXED IND 22UH 3.1A 70 MOHM SMD

Catalog: Fixed Inductors

DataSheet: AX97-30220 PDF

Country of origin: -

Date code: -

AX97-30220 Specifications

Type	Description
Series:	AX97
Package:	Box
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	3.1 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	70mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	SMD
Size / Dimension:	0.530" L x 0.370" W (13.46mm x 9.40mm)
Height - Seated (Max):	0.232" (5.90mm)
