SDR7030-150M

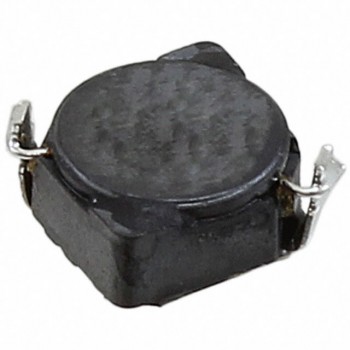

Image is for reference,
please contact us to get the real picture

Part No :: SDR7030-150M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 15UH 1.2A 115 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SDR7030-150M PDF

Availability: 0 pieces

Unit Price: ~~$0.37400~~

Current price of SDR7030-150M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDR7030-150M Specifications

Type	Description
Series:	SDR7030
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	15 µH
Tolerance:	±20%
Current Rating (Amps):	1.2 A
Current - Saturation (Isat):	1.3A
Shielding:	Unshielded
DC Resistance (DCR):	115mOhm Max
Q @ Freq:	14 @ 2.52MHz
Frequency - Self Resonant:	33MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max):	0.130" (3.30mm)

Please confirm the specifications of the products when ordering.
