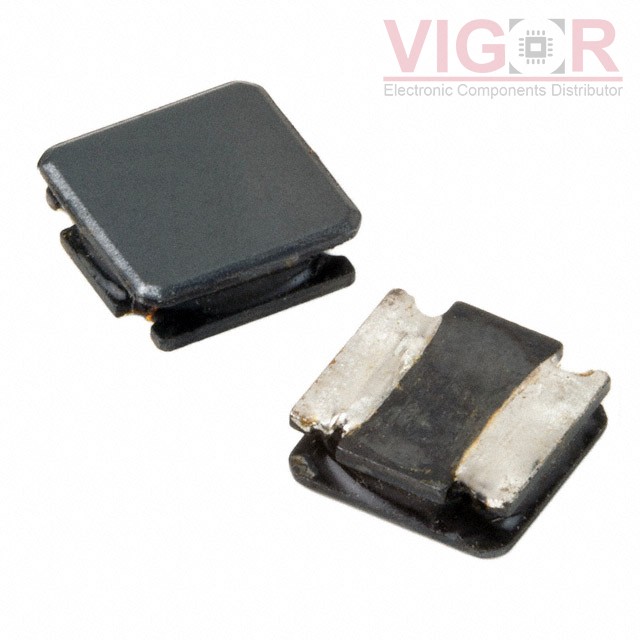

ASPI-0615FS-220M-T2

Part No :: ASPI-0615FS-220M-T2

Manufacturer: Abracon

Description: FIXED IND 22UH 1A 170 MOHM SMD

Catalog: Fixed Inductors

DataSheet: ASPI-0615FS-220M-T2 PDF

Availability: 3227 pieces

Unit Price: ~~$0.63000~~

Current price of ASPI-0615FS-220M-T2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ASPI-0615FS-220M-T2 Specifications

Type	Description
Series:	ASPI-0615FS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	1.1A
Shielding:	Shielded
DC Resistance (DCR):	170mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-25°C ~ 120°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):	0.087" (2.20mm)

Please confirm the specifications of the products when ordering.
