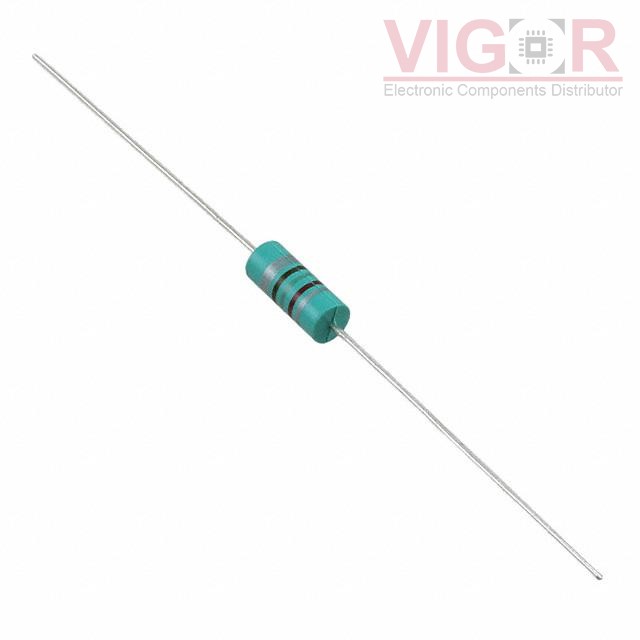

IMS05ST220J

Part No :: IMS05ST220J

Manufacturer: Vishay / Dale

VIGOR # :: 4435593

Description: FIXED IND 22UH 290MA 960 MOHM TH

Catalog: Fixed Inductors

DataSheet: IMS05ST220J PDF

Country of origin: -

Date code: -

IMS05ST220J Specifications

Type	Description
Series:	IMS-5
Package:	-
Part Status:	Obsolete
Type:	Molded
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±5%
Current Rating (Amps):	290 mA
Current - Saturation (Isat):	220mA
Shielding:	Shielded
DC Resistance (DCR):	960mOhm Max
Q @ Freq:	45 @ 2.5MHz
Frequency - Self Resonant:	41MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	2.5 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max):	-
