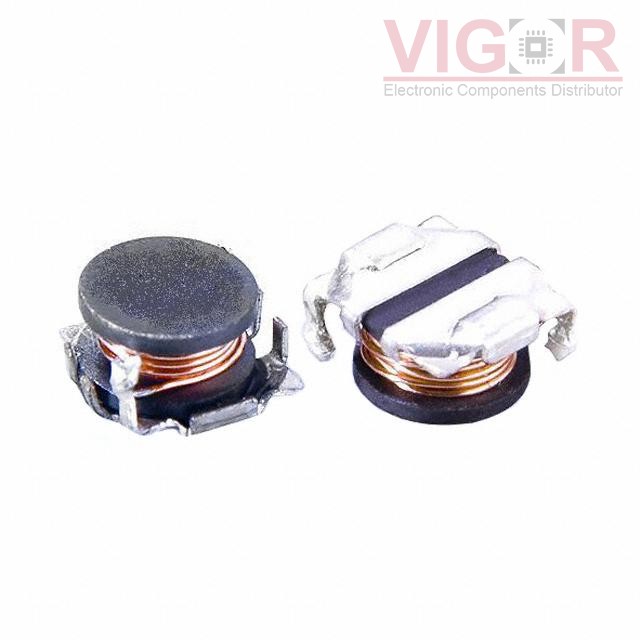

SCH53-4R7

Part No :: SCH53-4R7

Manufacturer: Signal Transformer

VIGOR # :: 4435814

Description: FIXED IND 4.7UH 2A 96 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SCH53-4R7 PDF

Country of origin: -

Date code: -

SCH53-4R7 Specifications

Type	Description
Series:	SCH53
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	4.7 µH
Tolerance:	±20%
Current Rating (Amps):	2 A
Current - Saturation (Isat):	1.68A
Shielding:	Unshielded
DC Resistance (DCR):	96mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	7.96 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.213" W (6.00mm x 5.40mm)
Height - Seated (Max):	0.126" (3.20mm)
