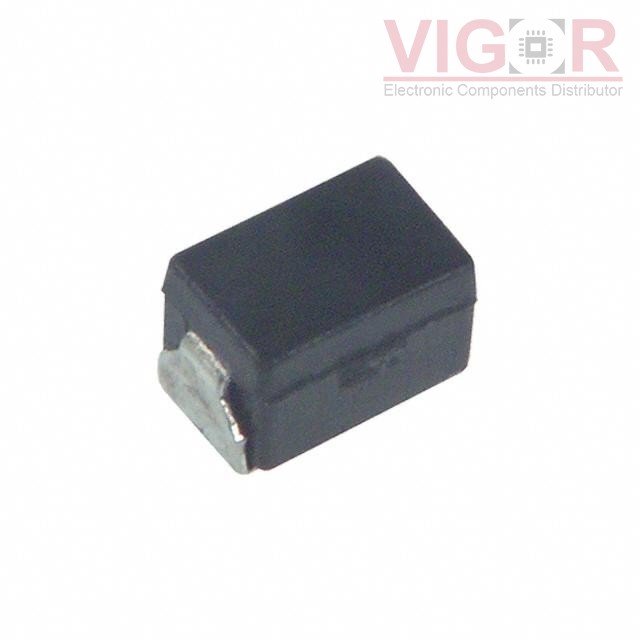

ELJ-PC2R2MF3

Part No :: ELJ-PC2R2MF3

Manufacturer: Panasonic

Description: FIXED IND 2.2UH 700MA 190 MOHM

Catalog: Fixed Inductors

DataSheet: ELJ-PC2R2MF3 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELJ-PC2R2MF3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ELJ-PC2R2MF3 Specifications

Type	Description
Series:	PC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	330mA
Shielding:	Unshielded
DC Resistance (DCR):	190mOhm
Q @ Freq:	-
Frequency - Self Resonant:	95MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.071" (1.80mm)

Please confirm the specifications of the products when ordering.
