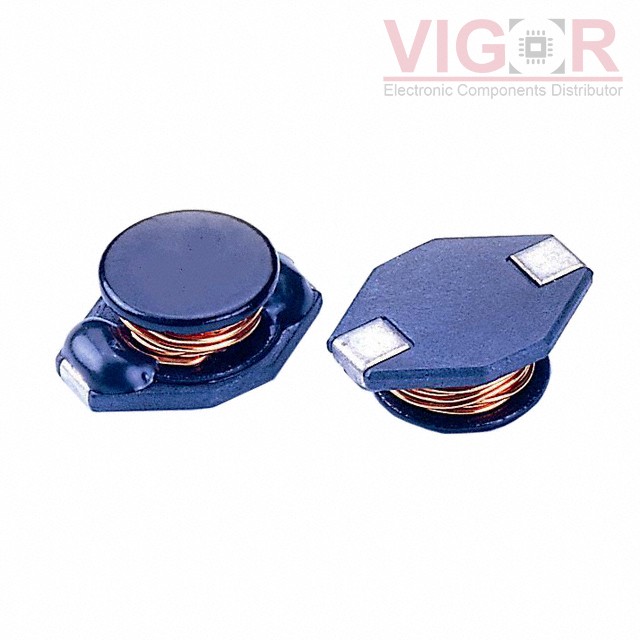

SC3316F-470

Part No :: SC3316F-470

Manufacturer: Signal Transformer

VIGOR # :: 4436284

Description: FIXED IND 47UH 1.8A 160 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SC3316F-470 PDF

Country of origin: -

Date code: -

SC3316F-470 Specifications

Type	Description
Series:	SC3316F
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	47 µH
Tolerance:	±20%
Current Rating (Amps):	1.8 A
Current - Saturation (Isat):	1.6A
Shielding:	Unshielded
DC Resistance (DCR):	160mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.530" L x 0.390" W (13.45mm x 9.90mm)
Height - Seated (Max):	0.205" (5.21mm)
