SCC5D23-100

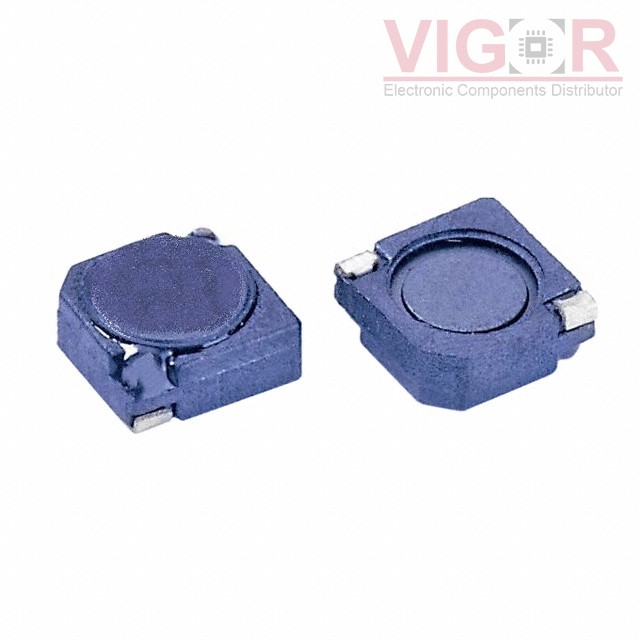

Image is for reference,
please contact us to get the real picture

Part No :: SCC5D23-100

Manufacturer: Signal Transformer

Description: FIXED IND 10UH 1.55A 133 MOHM

Catalog: Fixed Inductors

DataSheet: SCC5D23-100 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SCC5D23-100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCC5D23-100 Specifications

Type	Description
Series:	SCC5D23
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	1.55 A
Current - Saturation (Isat):	1.04A
Shielding:	Shielded
DC Resistance (DCR):	133mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):	0.098" (2.50mm)

Please confirm the specifications of the products when ordering.
