L-14W8N2SV4E

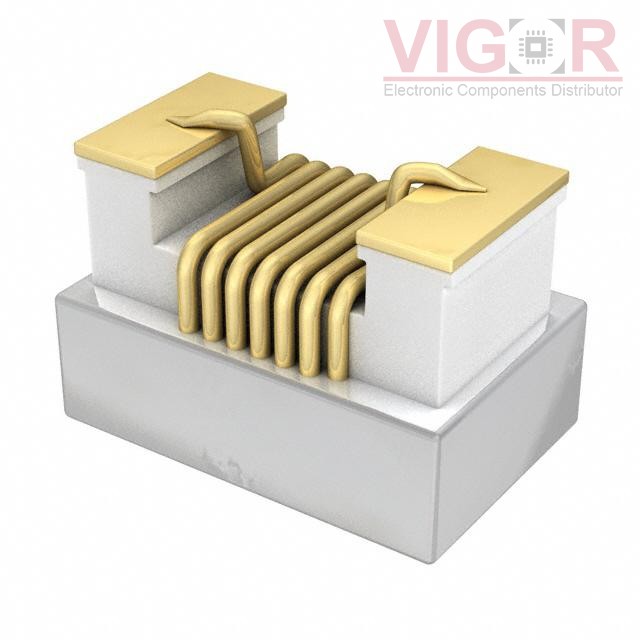

Image is for reference,
please contact us to get the real picture

Part No :: L-14W8N2SV4E

Manufacturer: Johanson Technology

Description: FIXED IND 8.2NH 700MA 100 MOHM

Catalog: Fixed Inductors

DataSheet: L-14W8N2SV4E PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of L-14W8N2SV4E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

L-14W8N2SV4E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	8.2 nH
Tolerance:	±0.3nH
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	100mOhm Max
Q @ Freq:	30 @ 250MHz
Frequency - Self Resonant:	4.8GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.037" (0.95mm)
