SC105-120

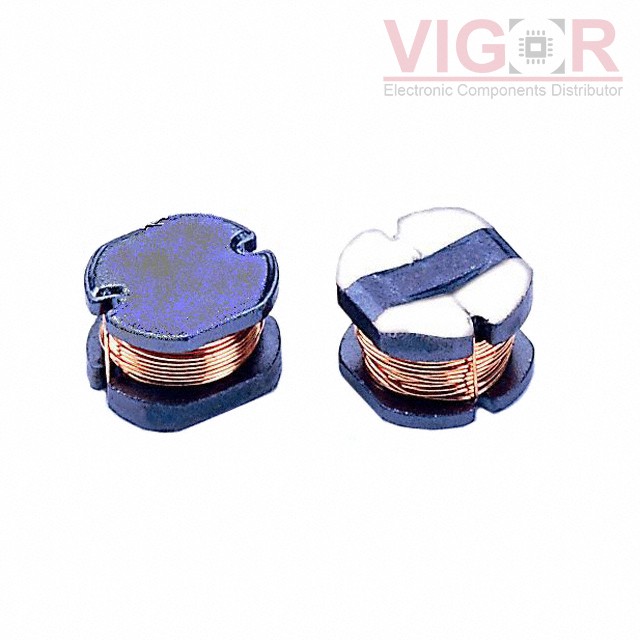

Image is for reference,
please contact us to get the real picture

Part No :: SC105-120

Manufacturer: Signal Transformer

Description: FIXED IND 12UH 3.3A 70 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SC105-120 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SC105-120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC105-120 Specifications

Type	Description
Series:	SC105
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	12 µH
Tolerance:	±20%
Current Rating (Amps):	3.3 A
Current - Saturation (Isat):	2.45A
Shielding:	Unshielded
DC Resistance (DCR):	70mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.406" L x 0.366" W (10.30mm x 9.30mm)
Height - Seated (Max):	0.224" (5.70mm)
