PM1210-181J-RC

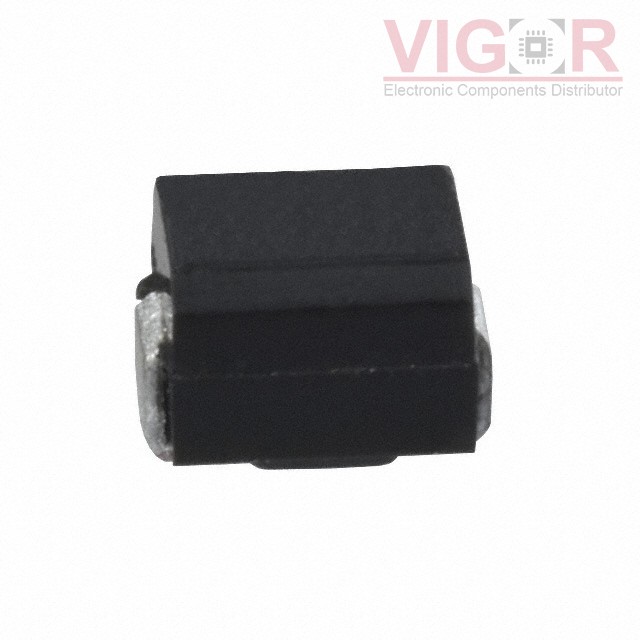

Image is for reference,
please contact us to get the real picture

Part No :: PM1210-181J-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 180UH 50MA 17 OHM SMD

Catalog: Fixed Inductors

DataSheet: PM1210-181J-RC PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PM1210-181J-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PM1210-181J-RC Specifications

Type	Description
Series:	PM1210
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	180 µH
Tolerance:	±5%
Current Rating (Amps):	50 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	17Ohm Max
Q @ Freq:	20 @ 796kHz
Frequency - Self Resonant:	7MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.087" (2.20mm)
