CKP32161R5M-T

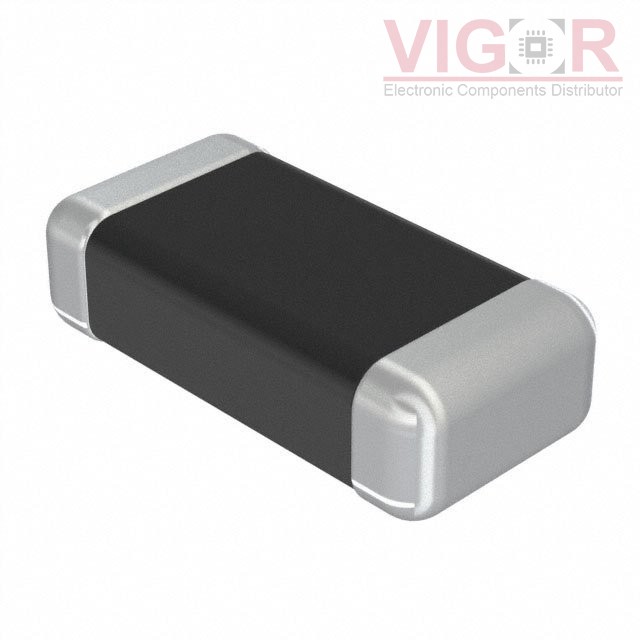

Image is for reference,
please contact us to get the real picture

Part No :: CKP32161R5M-T

Manufacturer: TAIYO YUDEN

Description: FIXED IND 1.5UH 1A 130 MOHM SMD

Catalog: Fixed Inductors

DataSheet: CKP32161R5M-T PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CKP32161R5M-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CKP32161R5M-T Specifications

Type	Description
Series:	CK, P Type
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	1.5 µH
Tolerance:	±20%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	130mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206 (3216 Metric)
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.035" (0.90mm)
