PE-0805CM561JTT

Part No :: PE-0805CM561JTT

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4438682

Description: FIXED IND 560NH 240MA 3.1 OHM

Catalog: Fixed Inductors

DataSheet: PE-0805CM561JTT PDF

Country of origin: -

Date code: -

PE-0805CM561JTT Specifications

Type	Description
Series:	0805CM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	560 nH
Tolerance:	±5%
Current Rating (Amps):	240 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.1Ohm Max
Q @ Freq:	40 @ 100MHz
Frequency - Self Resonant:	600MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.090" L x 0.066" W (2.29mm x 1.68mm)
Height - Seated (Max):	0.062" (1.58mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 05 - Apr 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PE-0805CM561JTT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

B78108T1222K000

FIXED IND 2.2UH 520MA 350 MOHM

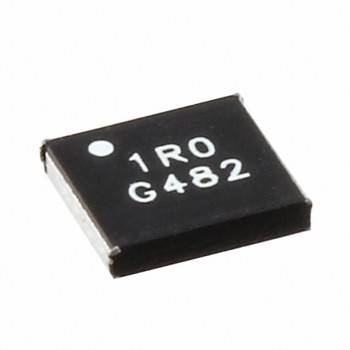

0410CDMCBDS-3R3MC

FIXED IND 3.3UH 2.2A 165 MOHM

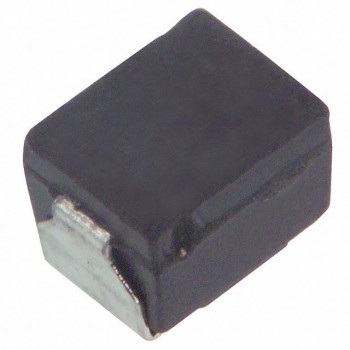

ELJ-EA1R5MF
