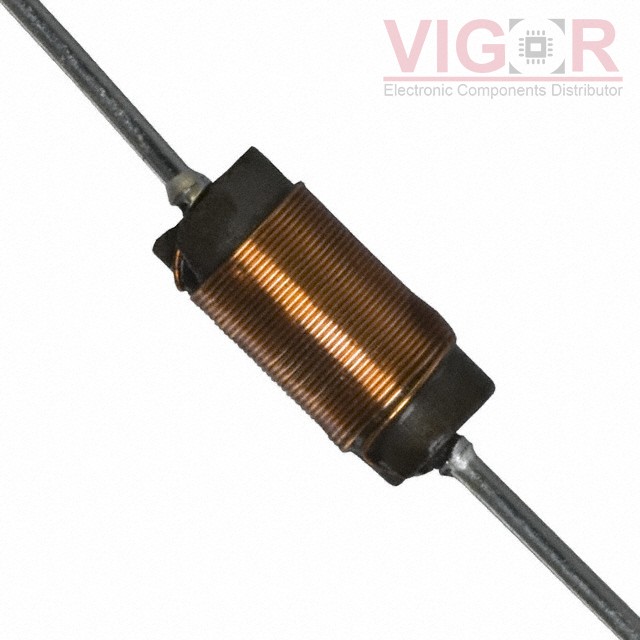

70F686AI-RC

Part No :: 70F686AI-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4439740

Description: FIXED IND 6.8UH 566MA 624MOHM TH

Catalog: Fixed Inductors

DataSheet: 70F686AI-RC PDF

Country of origin: -

Date code: -

70F686AI-RC Specifications

Type	Description
Series:	70F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron
Inductance:	6.8 µH
Tolerance:	±10%
Current Rating (Amps):	566 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	624mOhm Max
Q @ Freq:	40 @ 7.9MHz
Frequency - Self Resonant:	49MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.150" Dia x 0.250" L (3.81mm x 6.35mm)
Height - Seated (Max):	-
