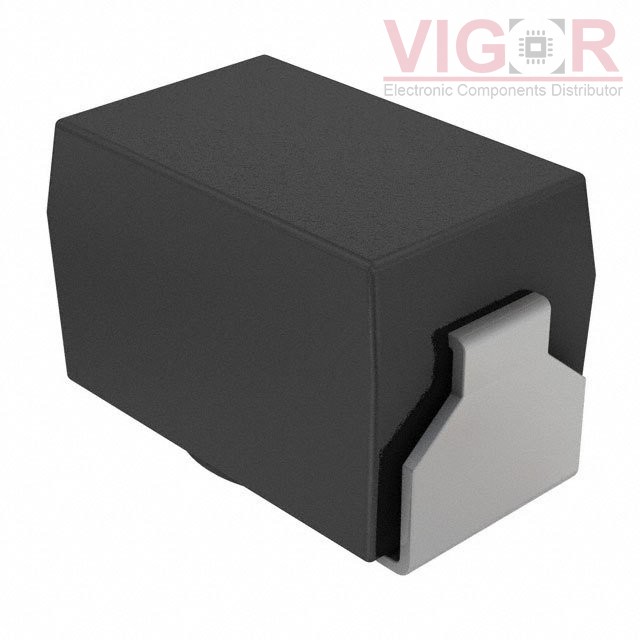

| Type | Description |
|---|---|
| Series: | IMC-0805 |
| Package: | Tape & Reel (TR) |
| Part Status: | Obsolete |
| Type: | Wirewound |
| Material - Core: | Non-Magnetic |
| Inductance: | 150 nH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 230 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 1.13Ohm Max |
| Q @ Freq: | 10 @ 25.2MHz |
| Frequency - Self Resonant: | 600MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 25.2 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0805 (2012 Metric) |
| Supplier Device Package: | 0805 (2012 Metric) |
| Size / Dimension: | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max): | 0.061" (1.55mm) |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of IMC0805ERR15K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
