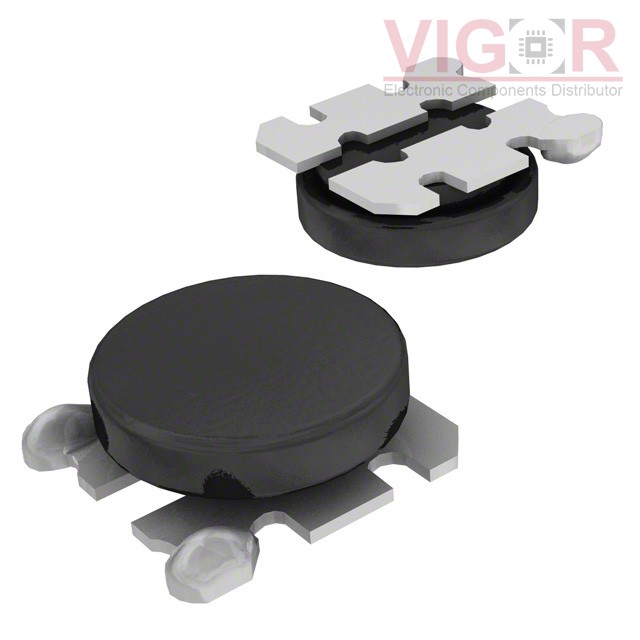

CDH2D09SNP-2R4MC

Part No :: CDH2D09SNP-2R4MC

Manufacturer: Sumida Corporation

VIGOR # :: 4441244

Description: FIXED IND 2.4UH 780MA 195 MOHM

Catalog: Fixed Inductors

DataSheet: CDH2D09SNP-2R4MC PDF

Country of origin: -

Date code: -

CDH2D09SNP-2R4MC Specifications

Type	Description
Series:	CDH2D09S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	-
Material - Core:	Ferrite
Inductance:	2.4 µH
Tolerance:	±20%
Current Rating (Amps):	780 mA
Current - Saturation (Isat):	560mA
Shielding:	Unshielded
DC Resistance (DCR):	195mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.094" L x 0.094" W (2.40mm x 2.40mm)
Height - Seated (Max):	0.039" (1.00mm)
