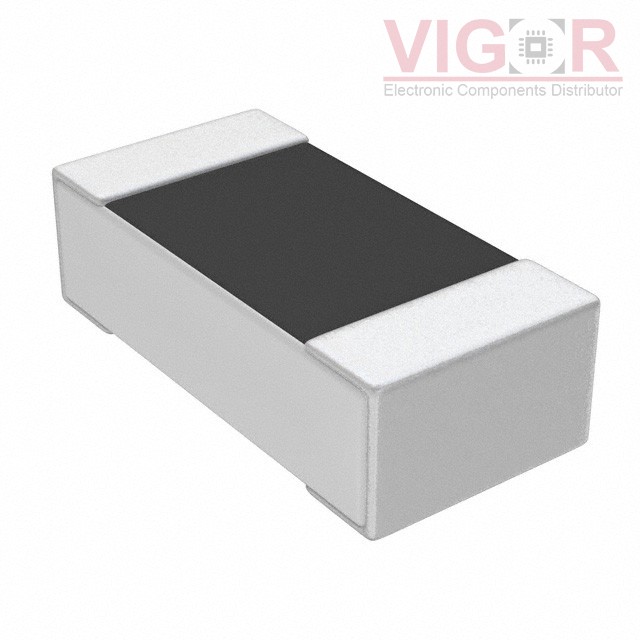

ATFC-0603-22N-FT

Part No :: ATFC-0603-22N-FT

Manufacturer: Abracon

VIGOR # :: 4442778

Description: FIXED IND 22NH 250MA 1.95 OHM

Catalog: Fixed Inductors

DataSheet: ATFC-0603-22N-FT PDF

Country of origin: -

Date code: -

ATFC-0603-22N-FT Specifications

Type	Description
Series:	ATFC-0603
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Thin Film
Material - Core:	Ceramic
Inductance:	22 nH
Tolerance:	±1%
Current Rating (Amps):	250 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.95Ohm Max
Q @ Freq:	15 @ 300MHz
Frequency - Self Resonant:	2GHz
Ratings:	-
Operating Temperature:	-25°C ~ 85°C
Inductance Frequency - Test:	300 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.022" (0.55mm)
