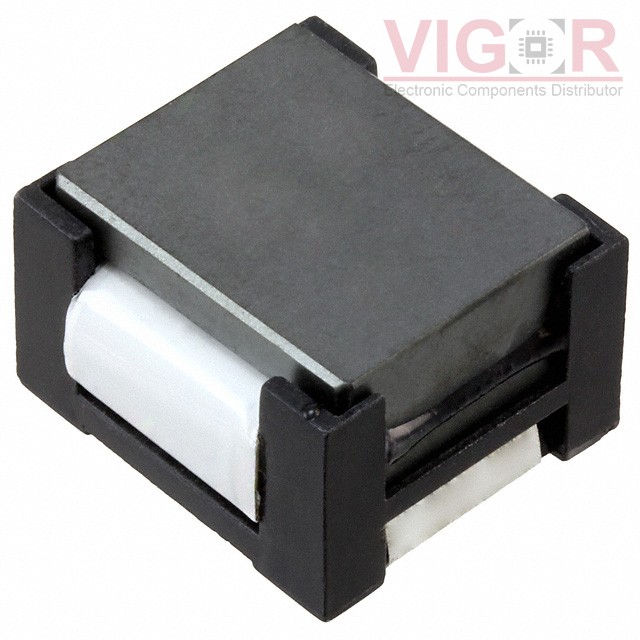

HC2-2R2TR-R

Image is for reference,
please contact us to get the real picture

Part No :: HC2-2R2TR-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 2.2UH 24.3A 2.3 MOHM

Catalog: Fixed Inductors

DataSheet: HC2-2R2TR-R PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HC2-2R2TR-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HC2-2R2TR-R Specifications

Type	Description
Series:	HC2
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	24.3 A
Current - Saturation (Isat):	31.9A
Shielding:	Unshielded
DC Resistance (DCR):	2.3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	300 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.756" L x 0.748" W (19.20mm x 19.00mm)
Height - Seated (Max):	0.500" (12.70mm)
