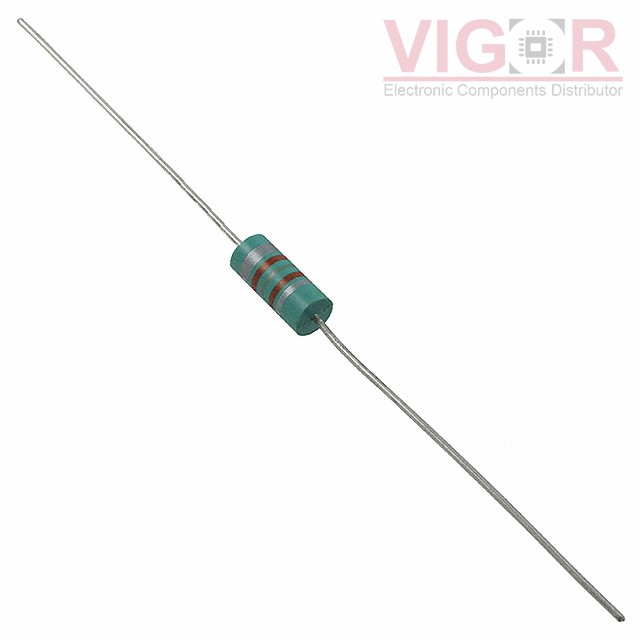

IM02BH100K

Part No :: IM02BH100K

Manufacturer: Vishay / Dale

VIGOR # :: 4446745

Description: FIXED IND 10UH 130MA 3.7 OHM TH

Catalog: Fixed Inductors

DataSheet: IM02BH100K PDF

Country of origin: -

Date code: -

IM02BH100K Specifications

Type	Description
Series:	IM
Package:	Bulk
Part Status:	Obsolete
Type:	Molded
Material - Core:	Iron
Inductance:	10 µH
Tolerance:	±10%
Current Rating (Amps):	130 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.7Ohm Max
Q @ Freq:	55 @ 7.9MHz
Frequency - Self Resonant:	50MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max):	-
