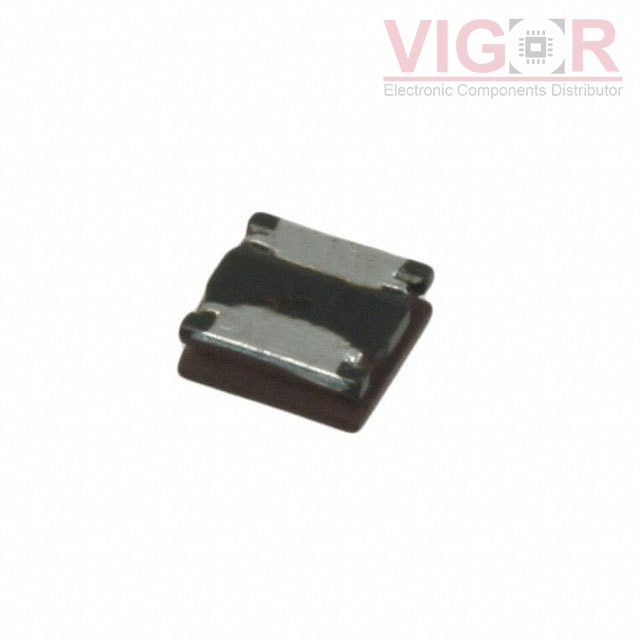

LQH3NPN220MMRE

Part No :: LQH3NPN220MMRE

Manufacturer: TOKO / Murata

VIGOR # :: 4446805

Description: FIXED IND 22UH 750MA 576 MOHM

Catalog: Fixed Inductors

DataSheet: LQH3NPN220MMRE PDF

Country of origin: -

Date code: -

LQH3NPN220MMRE Specifications

Type	Description
Series:	LQH3
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	750 mA
Current - Saturation (Isat):	430mA
Shielding:	Shielded
DC Resistance (DCR):	576mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	20MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1212 (3030 Metric)
Supplier Device Package:	1212 (3030 Metric)
Size / Dimension:	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):	0.059" (1.50mm)
